  You are in : Products list >>Tower packing>>Ceramic Berl Saddle

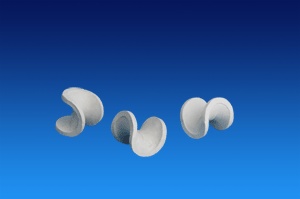

Ceramic Berl Saddle
ceramic berl saddle
Plastic saddle ring, Plastic super saddle ring, Ceramic super saddle ring, Ceramic Berl saddle ring
is an early developed random packing in the shape of saddle, which internal and external surfaces are open entirely. Distribution of vapor-liquid is distributed evenly same at both sides.

When Berl saddles are stacked in the column, comparing with Raschig Ring, the pressure to the column wall is lower. Since both internal and external sides have the same shape, Berl saddles are often superposed each other when they are stacked in the column. It often causes decrease of accumulation voidage. Comparing with Raschig Ring, Berl Saddle is easier to be crashed when stacking in the column. Now, it’s being replaced by improved Ceramic Saddle.

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Ceramic Berl Saddle can resist high temperature, high pressure, acid, alkali, salt and various organic solvents. It can be applied in petrochemical, chemical, fertilizer, gas and environmental protection industries.

Technical Specification

Size, mm

Specific surface area, m2/m3

Free volume, %

Bulk number per cube, pieces/m3

Bulk Density, Kg/m3

Φ 19 (3/4")

225

58

83950

725

Φ 25 (1.0")

206

61

43250

640

Φ 38 (1.5")

110

72

12775

617

Φ 50 (2.0")

95

72

7900

650


Chemical Composition
SiO2

Al2O3

Fe2O3

K2O+Na2O

CaO

>70%

 17-23%

<1%

2-3%

<1-2%
